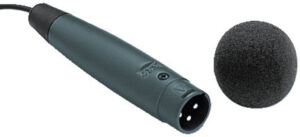

JTS CX-505 Electret instrument microphone

Beschrijving

The CX-505 is a Condenser Instrument microphone. The Miniature profile makes it unobtrusive for the musician. The shock mount featuring a sturdy clamp and spider suspension ensures secure mounting on drum rims, percussion instruments, and cymbal stands in either a horizontal or vertical position without unwanted resonance. Standard XLR connection.Phantom power required. Supplied in a robust transport case

State-of-the-art microphone for drummers and percussionists
Brilliant sound which is always accentuated and powerful, even at great dynamic gaps

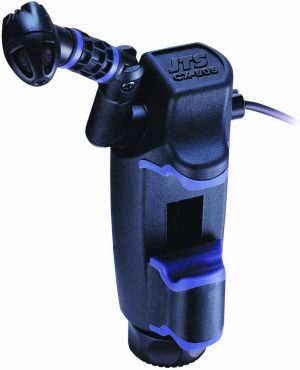

Clamp with rubber jaws, to be attached to the rim of drums
Miniature gooseneck, can be turned by 230°
Suppression of structure-borne noise

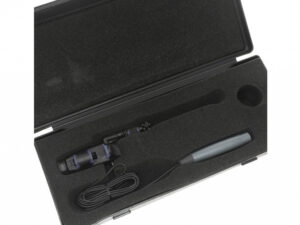

Supplied in a robust transport case

Technical specifications CX-505


Description	instrument microphone
Transmission method	cable
Polar pattern	cardioid
System	electret

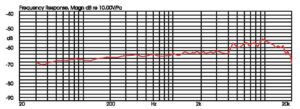

Audio frequency range	50-18,000 Hz
Nominal impedance	220 Ω
Sensitivity	5.6 mV/Pa
Max. sound pressure	130 dB
Power supply	DC 48 V, phantom power
Housing material	plastic
Admiss. ambient temp.	0-40 °C
Weight	187 g
Connection	XLR, bal.
Packing dimensions (W x H x L)	0.17 x 0.085 x 0.37 m
Gross weight	0.893 kg
Net weight	0.187 kg
