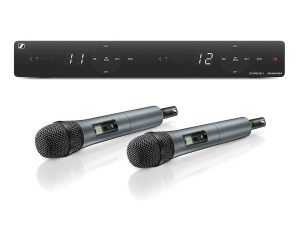

Sennheiser XS Wireless 1-825 Dual B-Band| Draadloze 2 Kanaals Microfoon set

Beschrijving

Don’t fight with your wireless system. Instead, take advantage of the Sennheiser XSW 1-825 Dual’s intuitive design, and get on stage feeling refreshed and confident. With a dual-channel receiver and two handheld transmitters loaded with legendary 825 capsules, you have everything you need to sound great. And all without the hassle of complex menus and lengthy cables.

Get up and running in seconds. Automatic frequency management and simple component synchronisation make setting up simple. And once you’re on stage, antenna-switching diversity operation keeps your signal clear and consistent. Plus, with the ability to utilise up to ten systems at the same time, you’ve got a system that grows with you. XSW 1 systems are more than just a cable replacement. They’re your ticket to better performance.

• 614MHz – 638MHz Wireless Operating Frequency
• Intuitive, reliable, and versatile – hassle-free wireless for vocalists, presenters, and more
• Crisp and clear vocal reproduction with Sennheiser’s renowned 825 capsule
• Get setup in seconds with automatic frequency management and simple synchronisation
• Configure and use up to ten systems simultaneously – no job is too big or too small

Simplicity at its best

You already have enough on your mind when it comes to performing. So why would you want to spend hours trying to set something up? With a Sennheiser XSW 1 Wireless System in your rig, you don’t have to worry about that anymore.

Getting your system up and running is a breeze. Automatic frequency management takes the pain out of frequency switching. And if you want to do it manually, you can do that too. The easy-to-navigate streamlined interface on the receiver makes finding and changing settings quick and easy.

Syncing your components is simple too. Just hold the SYNC button on your transmitter until the symbol flashes, then press SYNC on your receiver. That’s it. All done. All that’s left to do is make sure that everything is connected to the rest of your setup, and you’re good to go.

The system you can rely on

You’re all setup. You’re on stage. And you’re ready to get this show on the road. Nothing can ruin that feeling. Especially with an XSW 1 system by your side. Whether it’s once a week, or five times a day, you can count on true Sennheiser quality to get you through every single performance without a hitch.

Diversity reception keeps your signal clean and clear, automatically switching between your receiver’s antennas when dropouts are detected. Those antennas are neatly integrated inside the receiver too, so you don’t have to worry about them being accidentally dislodged or broken off.

It’s not just about the wireless performance either. Sennheiser products are built to last. From the back of the van, to the cramped stage side, and back home again. You want your gear to be able to endure every single part of your performance, both on and off the stage. And with Sennheiser’s dedication to quality and reliability, that’s exactly what you get.

Vocal versatility

Singer? Presenter? Cattle auctioneer? No matter what you need your mic for, the 825 capsule ensures you’re heard with clarity. Every word is crisp and articulate, and every nuance is reproduced with absolute precision. A soft presence boost helps you cut through the mix whilst retaining the natural character of your voice. Plus, with its cardioid polar pattern, you can be sure that it’s just you that your audience hears, and not everything else around you.

Included In The Box

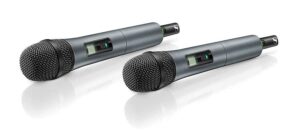

• 2 x SKM 825-XSW Handheld Transmitters with Mute Switch & e825 Cardioid Dynamic Capsules
• 2 x MZQ 1 Microphone Clips

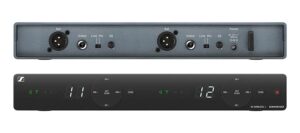

• 1 x EM-XSW 1 DUAL Stationary 2-Channel Receiver with Internal Antennas
• 1 x NT 12-5 CW Power Supple
• 2 x AA Batteries
• Quick Guide

Features

• Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
• Antenna-switching 2-channel diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels
• Perfect for singers and presenters
• Designed with ease-of-use in mind
• Streamlined interface

Specifications

System

• • Modulation: Wideband FM
  • Switching Bandwidth: Up to 24MHz
  • Frequencies: 80 x factory presets (8 x banks of 10 channels each)
  • Signal-to-Noise Ratio: ≥103dBA
  • THD: ≤0.9
  • Temperature Range:
    • Operation: 0°C to +40°C
    • Storage: -20°C to +70°C
  • Transmitter Synchronization: 2.4GHz, low power OQPSK (only active during synchronization)
  • Transducer Principle: Dynamic
  • Frequency Response: 55Hz – 16kHz
  • Pick-up Pattern: Cardioid
  • Sensitivity: 1.8mV/Pa (free field, no load at 1kHz)
  • Nominal Impedance: 1k?
  • Connector: XLR-3

EM-XSW 1 Dual

• • Receiver Principle: Double Superheterodyne
  • Diversity Principle A: Antenna switching diversity via internal antennas
  • Sensitivity (At Peak Deviation):
  • AF Frequency Response: 50Hz – 16kHz (-3dB)
  • Max. AF Output Voltage: (At peak deviation, 1kHz AF) 1/4” socket (unbalanced): +6dBu
  • XLR Socket (Balanced): +12dBu
  • Audio Adjustment Range: 45dB, adjustable in 5dB steps
  • Power Supply: 12V DC nom. / 300mA
  • Squelch: Adjustable from 3dBµV to 28dBµV
  • Line/Mic Level: 20dB, switchable
  • Housing Material: ABS
  • Dimensions (W x H x D): Approx. 320mm x 126.5mm x 42mm
  • Weight: Approx. 620g

SKM 825-XSW

• • RF Output Power: 10mW
  • AF Frequency Response: 80Hz – 16kHz
  • Power Supply: 2 x AA batteries, 1.5V
  • Operating Time: Approx. 10 hours
  • Microphone Type: Dynamic
  • Pick-up Pattern: Cardioid
  • Input Sensitivity (Capsule): 1.5mV/Pa
  • Transmitter Sensitivity: 0 to -30dB, adjustable in 10dB steps
  • Housing Material: ABS
  • Dimensions (Length x Diameter): 260mm x 50mm
  • Weight: Approx. 245g
